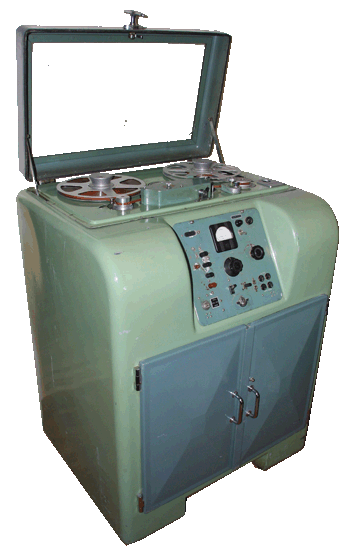

BTR 1 (EMI) 1948







New Page 1

The EMI BTR 1 reel to reel tape recorder was the first tape recorder sold in the UK, the British (Along with the Americans reversed engineered the German magnetophone machines and created their ouwn inproved machines. The Americans brought out the Ampex 200 in 1947 and to follow a year later, the EMI BTR-1, both machines were very large, ran oxide out and ran at 30 ips to start with, later on they introduced slower speed machines with improved recording capabilities. The BTR-1 started out life in EMI's own recording studios, the very early ones would have been used in Abbey Studios and other EMI facilities before being sold out to places like the BBC.



Specifications
Era 1948
Customer Profesional studios
Cost when sold Unknown
Control type Mechanics cable like AEK K-1
Max Spool size 11 inch platters or spools
Speeds 15ips and 7.1/2ips
Motors 3 ucually located at the base of the recorder
Heads 3 running oxide out
Track configuration Full track mono
Frequency response Unknown but something like 40Hz - 14KHz
Other tech data Based on the German Magnetophons
Special features Built in tested and test sockets
