N4450 (Philips) 1974




New Page 1

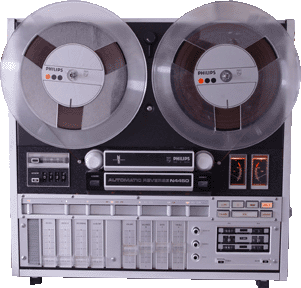

A nice auto reversing 6 head reel to reel produced by Philips. Using three
motors and dual capstan, this machine looks and sounds great. An interesting
feature of this machine is the timer. It is possible to set when the
recorder switches on and off for the purpose of timed recording. This
machine runs at 7 1/2, 3 3/4 and 1 7/8 IPS, and is a 4 track stereo
recorder. This is my first recorder which could take up to 10.5" reels, I
found that this model has underpowered spool motors which are not direct
drive induction motors as you would find on a ReVox but small DC motors on a
geared up Pulley and belt system.

Era 1970's
Customer High end domestic
Cost when sold Unknown
Control type Full Logic push buttons
Max Spool size 10.5"
record time 1080mins on LP tape @7.1/2ips
Speeds 7.1/2, 3.3/4, 1.7/8 ips
Motors Three all belt driven
EQ during playback 50-3180usecs @ 7.1/2ips
Wow and flutter 0.15% @ 7.1/2ips
Sig to noise 50dB @ 7.1/2ips
Heads 6, 2 X erase, 2 X record, 2 X replay
Track configuration 1/4 track stereo
Frequency response 40Hz- 20KHX with filter @ 7.1/2 (25KHz without filter)
Dimensions 520 X 500 X 210mm
Power 110 - 240V 50-60Hz 120 Watts
Other tech data Dual capstan drive, 30Watt internal amps
Special features Auto reverse continues play
